OpenClaw AI Agent Stack on Railway — n8n Workflows, Tailscale Mesh, GPU Compute & 500+ Integrations

The complete autonomous AI infrastructure stack. Deploy OpenClaw + n8n to Railway with Tailscale encrypted mesh networking, on-demand Modal GPU compute, and 500+ SaaS integrations — all pre-wired and ready from a single browser-based setup wizard. One click. Zero SSH. 90%+ LLM cost savings out of the box.

The standard OpenClaw Railway template gives you a gateway. This gives you the full stack.

	Bare OpenClaw	This Template
n8n workflow automation	✗	✓
Tailscale mesh access	✗	✓
Modal GPU compute	✗	✓
500+ SaaS integrations	✗	✓
LLM cost optimization	Manual	Auto (90%+ savings)
Setup	CLI	Browser wizard

---

What Gets Deployed

One click deploys the full stack. All companion services are pre-wired via Railway reference variables — no manual secret sharing or internal URL configuration required.

Core (always deployed)

Service	Source	Purpose
OpenClaw	This repo (Dockerfile)	AI gateway with setup wizard, Tailscale mesh, and 4-platform compute routing

Companion Services (optional — delete any you don't need)

Service	Image	Purpose	Depends On
n8n Primary	n8nio/n8n	Workflow automation engine with AI agent nodes	Postgres, Redis
n8n Worker	n8nio/n8n	Background workflow execution (queue mode)	n8n Primary, Postgres, Redis
Postgres	postgres-ssl:17	Persistent storage for n8n, Postiz, and Temporal	—
Redis	redis:8.2.1	Queue/cache backend for n8n and Postiz	—
Postiz	postiz-app	Social media scheduling and automation	Postgres, Redis
Temporal	temporalio/auto-setup	Distributed workflow orchestration	Postgres

Also Included

• Tailscale encrypted mesh networking (embedded in OpenClaw container — no extra service)
• 39 skills, 3 CLI tools, and 500+ SaaS integrations via Composio out of the box
• OpenTelemetry tracing with Langfuse (LLM evals) and PostHog (product analytics)
• Cost-optimized defaults that reduce API spend by 90%+
• Browser-based setup wizard at /setup — no terminal required

---

Prerequisites

You need: Railway account (2 min), Tailscale auth key (3 min), one LLM API key (already have). Total setup: under 10 minutes.

1. Railway account — railway.app
2. Tailscale account — tailscale.com (free for personal use)
3. Tailscale auth key — Generate at Tailscale Admin > Keys
   • Enable Reusable and Ephemeral (recommended)
   • Pre-approve the key to skip manual device approval
4. LLM API key — Anthropic, OpenAI, Google, OpenRouter, DeepSeek, Grok, or Kimi

---

Quick Start

1. Deploy to Railway

Click the deploy button above, or:

1. Fork this repo to your GitHub account
2. Create a new project in Railway
3. Select "Deploy from GitHub repo" and pick your fork
4. Add a Volume mounted at /data (persists config and workspace across deploys)

2. Set Environment Variables

The template auto-generates secrets and wires all cross-service connections. You only need to fill in three values:

Variable	Required	Description
SETUP_PASSWORD	Yes	Password to access the /setup wizard
TAILSCALE_AUTHKEY	Yes	Tailscale auth key (reusable + ephemeral)
ANTHROPIC_API_KEY	Recommended	Set here or enter during the setup wizard

Everything else is pre-configured with sensible defaults. See .env.example for the full variable list.

3. Run the Setup Wizard

Once deployed, open your Railway service URL and navigate to /setup. Enter your SETUP_PASSWORD and follow the wizard:

1. Choose your model provider (Anthropic, OpenAI, Google, etc.)
2. Enter your API key
3. Optionally configure Telegram, Discord, or Slack channels
4. Click Run setup

The wizard applies cost-optimized defaults, copies 39 skills to your workspace, and starts the gateway automatically.

4. Connect from Your Local Machine

With Tailscale installed on your Mac/PC, your Railway instance appears on your tailnet:

# Verify the instance is visible
tailscale status | grep openclaw

# The OpenClaw gateway is accessible at:
# https://openclaw-railway.<tailnet>.ts.net

Your local OpenClaw CLI connects to the remote gateway over Tailscale — no SSH, no exposed ports.

---

Common Configurations

After deploying, delete any companion services you don't need from the Railway dashboard to reduce cost.

Configuration	Keep	Delete
OpenClaw only	OpenClaw	n8n, Postgres, Redis, Postiz, Temporal
OpenClaw + n8n	OpenClaw, n8n Primary, n8n Worker, Postgres, Redis	Postiz, Temporal
Full stack	Everything	—

---

Architecture

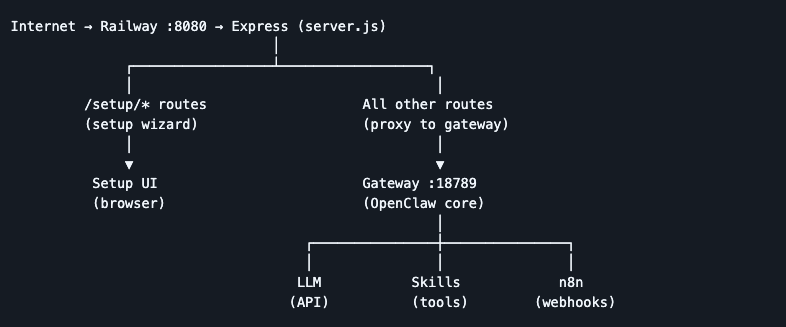

Request Flow

Internet → Railway :8080 → Express (server.js)
                                │
              ┌─────────────────┴──────────────────┐
              │                                     │
         /setup/* routes                   All other routes
         (setup wizard)                    (proxy to gateway)
              │                                     │
              ▼                                     ▼
          Setup UI                         Gateway :18789
          (browser)                        (OpenClaw core)
                                                    │
                                    ┌───────────────┼───────────────┐
                                    │               │               │
                                   LLM           Skills            n8n
                                  (API)          (tools)        (webhooks)

• Express listens on port 8080 (Railway's public domain)
• /setup/* routes serve the setup wizard UI (protected by SETUP_PASSWORD)
• All other routes proxy to the OpenClaw gateway on 127.0.0.1:18789
• The gateway only binds to loopback — never directly exposed to the internet
• Tailscale provides end-to-end encrypted access from your local machine

Compute Routing

The template routes workloads across 4 platforms automatically:

Platform	Best For	Cost
Railway (this container)	Gateway, web server, cron, lightweight CLI tasks	~$5–20/mo fixed
Modal (serverless)	ML inference, image/video gen, batch processing	Pay-per-second
n8n (orchestration)	Multi-step workflows, scheduled jobs, webhook chains	Included in Railway plan
Composio (SaaS bridge)	Direct SaaS actions (email, Slack, GitHub, CRM)	Free tier available

Examples:

"Fix the auth bug in middleware.ts"     → Railway local + Claude Opus
"Generate 100 product thumbnails"       → Modal A10G GPU + vision model
"Every morning, email a sales report"   → n8n scheduled workflow
"Post a message to Slack"               → Composio Rube MCP

---

Cost Optimization (Auto-Applied)

This template applies cost-optimized defaults on first setup that reduce LLM API spend by 90%+:

Setting	Value	Why
Heartbeat model	Free-tier via OpenRouter	Background checks use the cheapest compatible model
Active hours	06:00–23:00 UTC	Skip heartbeats while nobody's awake
Context pruning	cache-ttl with 6h TTL	Reduce token bloat automatically
Memory compaction	Flush at 40k tokens	Distill sessions into daily memory files
Concurrency limits	4 agents, 8 subagents max	Prevent runaway token consumption

Multi-Provider Auto-Registration

Set multiple API keys in Railway Variables — every available provider is detected and registered automatically at boot:

Variable	Provider	Models
ANTHROPIC_API_KEY	Anthropic	Opus 4.6, Sonnet 4.6, Haiku 4.5
OPENAI_API_KEY	OpenAI	GPT-4.1, GPT-4.1 Mini, GPT-4.1 Nano
DEEPSEEK_API_KEY	DeepSeek	DeepSeek Chat (V3), DeepSeek Reasoner (R1)
GROK_API_KEY	xAI	Grok 3, Grok 3 Mini
KIMI_API_KEY	Moonshot	Kimi K2

Heartbeat Fallback Chain

Free-tier models via OpenRouter with automatic failover:

1. nvidia/nemotron-3-nano-30b-a3b:free — primary (256K context)
2. stepfun/step-3.5-flash:free — fallback (256K context)
3. upstage/solar-pro-3:free — fallback (128K context)
4. arcee-ai/trinity-mini:free — fallback (131K context)

---

Pre-Installed Skills & Tools

39 skills and 3 CLI tools ship with this template — your instance is productive from first boot.

Skills by Category

Railway (7 skills) — deploy, status, environment, service, database, domain, projects

n8n (8 skills) — workflow patterns, JavaScript/Python code nodes, node configuration, expression syntax, MCP tools, validation, full knowledge base (545 node docs, 20 templates)

Development & DevOps (4 skills) — coding agent (Claude Code, Codex CLI), PR creator, TDD workflow, implementation planning

Communication & Productivity (4 skills) — Google Workspace CLI, email (IMAP/SMTP), WhatsApp CLI, Jira

Research & Analytics (5 skills) — last 30 days research (Reddit, X, YouTube, web), data storytelling, visualization, project planning, strategy advisory

Content & Creative (3 skills) — changelog social announcements, scientific slides, viral generator builder

CLI Tools (pre-installed in Docker)

Tool	Purpose
Rube MCP (@composio/rube-mcp)	500+ SaaS integrations (Gmail, Slack, Notion, GitHub, and more)
yt-dlp	YouTube video metadata and transcript extraction
Modal	Serverless GPU/compute — deploy functions, run batch jobs on A10G/A100/H100
Homebrew	Install additional CLI tools at runtime

---

Observability

Built-in OpenTelemetry instrumentation — all tracing is opt-in and degrades gracefully if no keys are set.

Backend	Purpose	Required Variables
Langfuse	LLM tracing, evals, cost tracking	LANGFUSE_PUBLIC_KEY + LANGFUSE_SECRET_KEY
PostHog	Product analytics (setup and gateway events)	POSTHOG_API_KEY
OTLP	Generic APM (Grafana, Jaeger, etc.)	OTEL_EXPORTER_OTLP_ENDPOINT

---

Managing Your Instance

Setup Wizard (/setup)

• Status — Gateway health, version, links to the OpenClaw UI
• Debug console — Run safe diagnostics without SSH
• Config editor — Edit openclaw.json with backup
• Backup/restore — Download and upload .tar.gz archives of /data
• Device pairing — Approve Telegram/Discord DM pairing requests

Updating OpenClaw

Live update (no restart): Open /setup → Debug console → openclaw.update → enter a ref:

--stable    # Latest release tag
--beta      # Latest pre-release
--canary    # Latest main branch commit
v2026.3.1   # Pin to a specific version

Boot-time update (no rebuild): Set OPENCLAW_UPDATE_REF in Railway Variables.

Full Docker rebuild: Redeploy from Railway dashboard (~10 min). Pin a version with build arg OPENCLAW_GIT_REF=v2026.2.19.

Safe Restart

To restart only OpenClaw without touching companion services:

scripts/safe-restart-openclaw.sh --yes

Connect Your Local Mac CLI

scripts/connect-mac-to-railway-gateway.sh

Verifies Tailscale, fetches the gateway token from Railway, and configures your local OpenClaw CLI against the remote gateway automatically.

---

Troubleshooting

Symptom	Cause	Fix
ECONNREFUSED 127.0.0.1:18789	Gateway not started	Check /setup/api/debug, verify API key is set
Gateway did not become ready in time	Timeout	Increase healthcheckTimeout in railway.toml
No model providers configured	Missing API key	Set ANTHROPIC_API_KEY or another LLM key in Railway Variables
n8n relation does not exist	DB not connected	Check DB_POSTGRESDB_HOST spelling, redeploy n8n
Tailscale not connecting	Expired or unapproved key	Verify TAILSCALE_AUTHKEY is reusable + ephemeral + pre-approved
No traces in Langfuse	Missing keys	Set LANGFUSE_PUBLIC_KEY + LANGFUSE_SECRET_KEY

For full troubleshooting details, visit /setup/api/debug for live diagnostics or open the Debug console at /setup and run openclaw doctor.

---

Security

• Setup wizard protected by SETUP_PASSWORD via HTTP Basic auth
• OpenClaw gateway binds to `127.0.
